Pecise and reliable position, velocity and 3D-attitude (heading, pitch, roll and heave) information
Advanced Navigation Solutions - ANavS®, based in Munich, Germany, is a leading company in the research and development of future navigation systems with Galileo and GPS signals for highly accurate positioning and navigation solutions with sensor fusion and AI.

ANavS® patented and innovative Sensor Fusion combines on a single board platform Multi-GNSS and Multi-Frequency RTK/PPP Technology.

Using Galileo's free-of-charge high-accuracy Precise Point Positioning corrections service HAS directly via satellite allows a real-time position accuracy better than 20 cm (horizontal).

ANavS® MS-RTK/PPP module includes up to 3 Multi-frequency, Multi-GNSS (GPS + Galileo + Glonass + Beidou) receivers, customer-selectable MEMS IMUs, a barometer, ulti communication interface for reception of additional sensor data, an optional LTE module for reception of RTK/ PPP corrections (e.g. from ANavS® RTCM reference station), and the powerful ANavS® Sensor Fusion on a single board.

An already enabled HAS, RTK/PPP and PPK engine allows to achieve highest precision on demand. The engine supports use of public available GNSS base station data from Brazilian Network for Continuous Monitoring (IBGE-RBMC) and terrestrial reference station (e.g. ANavS® RTCM reference station) via radio or internet.

The platform performs a tight coupling of all sensor data with an Extended Kalman Filter (EKF). Temporary GNSS outages (below bridges, in narrow canyons or sheltered location) or high multipath (e.g. below trees) are overcome by the fusion of of additional sensors. Thereby, precise position and attitude information is still provided in challenging environments.

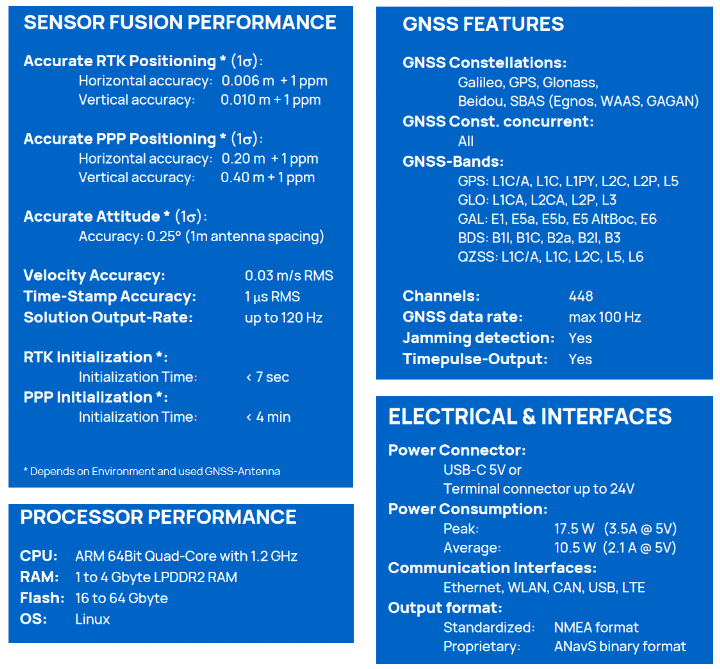

Performance & Features

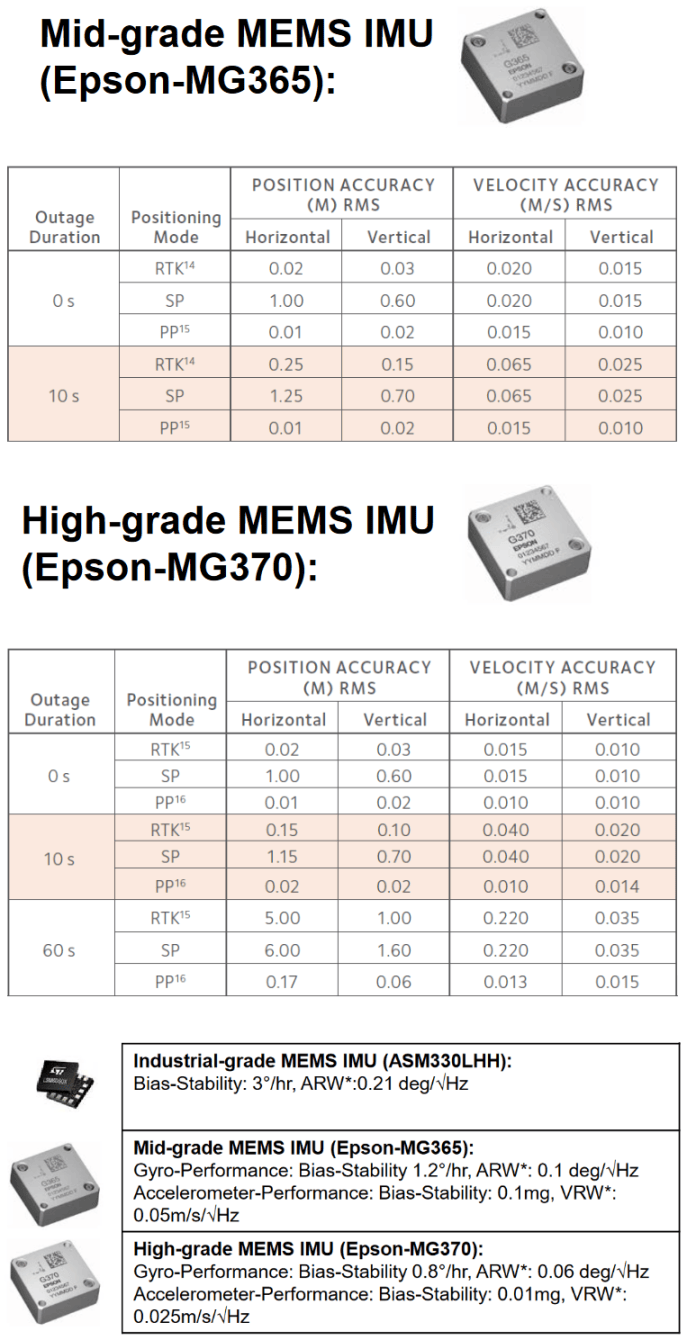

Performance during GNSS-Outages
